Such kind of products can be widely used for electrical tools, leveling instrument, orientator, range finder, laser swinger, laser level. We can provide photoelectric solutions for customers and can help design laser module to meet customers' requirement.

Specifications:

Outside Dimension: 20mm (dia)*58mm(L)

Output Wavelength: 405nm

Output Power: 40-50mW

Surface Treatment: Anode Purplish Red

Material of Outside: Aviation Aluminium

Circuit Control: ACC Line

Anti-access Protection: Yes

Operating Voltage: DC=3-5.5V

Working Current: I < 180mA

Warm-up Time: No

Working Temperature: -10°c~+40°c

Storage Temperature: +10°c~+40°c

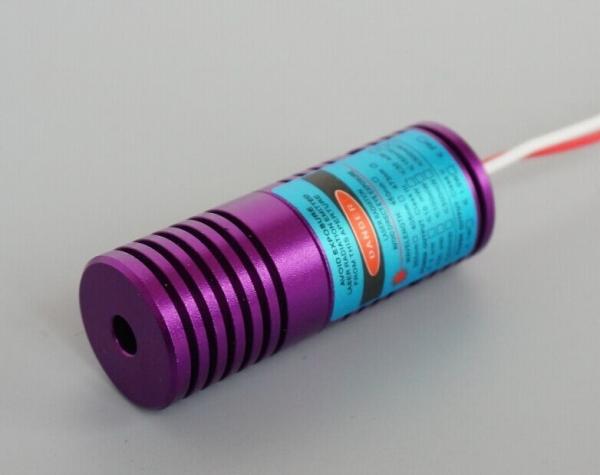

Structure : Laser Diode + Lenses + Radiating Shell

Remarks: Orange line is Positive ,White line is Negative.
