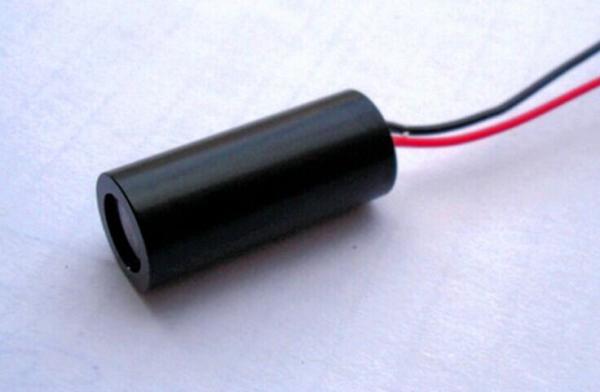

405nw 20mw violet line laser module

Ask Lasest Price
Certification :	CE ,Rohs
Model Number :	GS-405206L10-AL90
Price :	6.0USD
Delivery Time :	3-5 days for sample order or according to your order quantity
Payment Terms :	Paypal , Western Union ,T/T , Moneygram
Supply Ability :	10000pcs/month

Add to Cart

Product Details
Company Profile

405nw 20mw violet line laser module

Specification :

Wavelength:405nm±5nm

Output Power :< 20mw

Material:Aluminum

Max Operating Current: <60MA

Operating Voltage:DC=6V

Operating Temperature :-10℃～＋50℃

Storage Temperature :-20℃～＋80℃

Circuit Control:APC Circuit (with built-in electronic constant output PCB drive, with better stability)

Laser Color: Violet

Optical Lens: A grade PMMA lens

Beam Type: Line(Lens angle 5°;15°;20°;36.5°;45°;58°;90°;110°optional , the larger the angle is ,the long the line length will be ,but the line width will be the same , different angle will have different price , the default angle is 90° )

Line Width: <3mm at 1m distance

Dimension:φ10*23mm

Life Time :>10000 hours

Cable:150mm red and black wire.(red line is positive ,black wire is negative )

405nw 20mw violet line laser module
