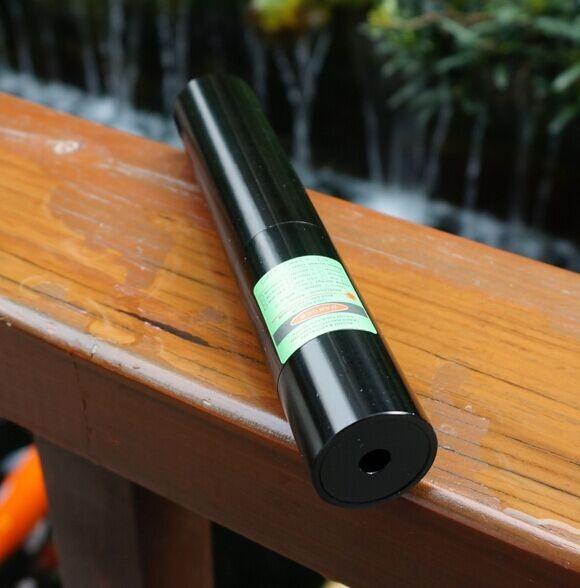

Specification :
Outside Dimension: 25*mm(Dia) x 145mm(L)
Surface Treatment: Black Anodize
Material of Outside: Aerospace Aluminum 6063
Output Wavelength: 510-530nm
Center Wavelength: 520nm
Output Power: 1000mW Class IV
Circuit Control: Step-down voltage with reverse connection
protection
Light-spot Shape: Punctiform
Light Beam Style: Continuous Lineal
Light-spot Size: at the distance of 10 metres less than 13mm(dia)
Focusing Mode: Adjustable Focusing
Working Current: 8.4V@ 1A
Operating Voltage: DC=7.4V
Starting Voltage: DC=5.8V
Warm-up Time: No
Working Temperature: -10°c~+60°c
Storage Temperature: -10°c ~+40°c
Power Supply Mode: 2pc ICR18350 lithium battery
Package : Color Box,
Remark: The price include a flashlight,2pcs battery and a charger.
Operation Guide:
1, Install the battery into flashlight per" - towards the taillock,
+ backwards the taillock" (Do not Reverse Polarity), lock the
tailstock and press ON/OFF button to light it.
2, It is suggested that continuous working time never more than 30
Seconds,for stable capability 3.7V Lithium Battery is recommended.
3, If you choose adjustable focusing function, rotate the head
holder to adjust the focus, Focus range is from 1cm to infinite.
Notice:
1, Never point the Laser beam to the eyes of human beings and
animals in using.
2, Avoid any of impact or shake which will cause the irreparable
damage of lasers? optical system.
3, Please keep away from the children, If necessary, please operate
under the guide of grown-up.
4, Please do not use the laser exceed temperature of 35°c or under 0°c, which will speed up the aging of the product.
5, Never use any unsuitable battery as power supply since the over
voltage will damage the flashlight.
6, Please take out the battery and keep it in the anti-static &
damp-proof place if not use it for a long time.
